Solyndra – Low Slope Solar Roof Solution
With
No Roof Penetration
Cylindrical modules optimize the collection of sunlight resulting in more solar electricity produced per roof. Excellent for large flat reflective roofs. 50 kW+
• Sundial Energy is an Authorized Solyndra Dealer.
• 2x the roof coverage with no need for optimizing tilting and spacing.
• Align panels in any direction with minimal loss of power.
• Clean, low profile appearance, fast, economical Install.
• Panel ratings from – 150 watts @ 66 volts to 200 watts @ 78 volts.
• Lightweight and self ballasting.
• No roof penetrations or attachments required.
• Stable in winds up to 138 mph.
• 25 year power warranty, 5 year product warranty.
Download pdf brochure here (2 MB)
Captures sunlight across 360 degree PV surface
With low wind resistant characteristics the wind blows through the Solyndra panels. No roof penetrations, attachments or ballast are needed. The panels may be oriented in any direction. They produce power from direct, diffuse and reflected sunlight from all angles resulting in significantly more solar electricity being generated per rooftop per year. With approximately twice the roof coverage and no need for tilting and spacing. Also, the panels operate at a cooler temperature and have much less soil buildup than traditional flat panels.

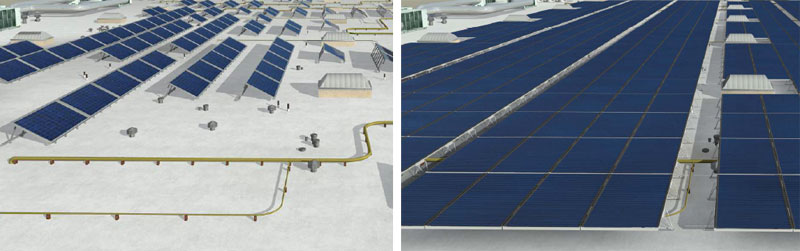

Traditional Crystalline Rack Roof Coverage Solyndra Roof Coverage
Specifications:
Photovoltaic Modules
• Roof slope: 3.5°
• Operating and Storage Temperature -40°F (-40°C) to 185°F (85°C)
• Dimensions: Panel: 5.97 ft. x 3.54 ft. x .16 ft. (1.82 m x 1.08 m x 0.05 m),
Height: 1 ft. to top of panel on mounts
• Roof Load: 3.3 lb/sq. ft.
• Wind Performance: 138 mph maximum
• UL listed, Fire Class C
Warranties
• 25 year limited power warranty
• 5 year product warranty
Balance-of-System
•NO proof penetrating or ballasted racking systems needed.
• Inverters (DC to AC conversion)
• AC and DC disconnects
• Batteries (optional)
• Charge controller (only with battery system)
• Meter or meters
Solyndra™ is a Solyndra trademark.
